 Power Module
|
 |

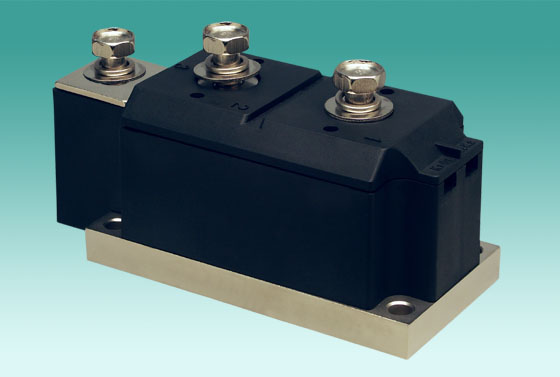

| MTC-800A |
 |
 |
 |
| MTC-600A |
MTC-250A |
MTC-160A |
|
| |
Power Semiconductor module's install and attention
|
Power Semiconductor module is the temperatuer susceptible component, must be installed on the radiator.Before the installation, clean the board-module and radiator surface with the ethyl alcohol clearly, after natural drying, spread heat conduction silica gel on the bottom board-module equality, the heat conduction silica del just covered the whole bottom board. Take the module from the radiator after installed, inspect the bottom boadrd-module whether complete cover it.
The ITAV is achieved by radiator, forced-air cooling (speed 6 m/s), Tc and pure anti-load. If the condition occured change, IFAV should reduce.
The radiator and the module touth board-face should be level off, the radiator board plane need ≤ 0.03 mm, press the module board on the radiator to guarantee the excellent heat conduction. Otherwise the touch thermal resistance increases, increases , effect the quantity of heat transmits from the tube core to the radiator.When electrode and copper bar connecting, screws need tight.
When natural cooling, the radiator should lay upright. According to the favorable air convection to sending out quantity of heat for the selection of module nominal current and radiator length, relative to the compulsion cold wind situation, the module nominal current and the radiator length should be double.
To insure is not pass the rating, we advice use temperature protective way.
Warning: When module TC passed the rating TC, should reduce, or possibly can cause thermal breakdown which the module can not be restore. |
| |
Power Semiconductor Module Applicaation domain
|
Power Semiconductor module is due to superior sealing form, small volume, easy assemble, contour artistic and maintain convenience, Uses massively in each kind of eletric power transformation situation. Usually, if single-phase power is under 25 KW and three-phase poew is under 120 KW, it will be used the thyristor or rectifier module.
The application are profession extremely widespread may divde three ways: ①AC control voltage, ②DC control voltage, ③non-contact electronic swithing, Mostly has AC motor soft startup or the energy conservation installation, welding power, AC-DC-drives, AC-drives, Static reactive power compensation system, the industry hests up, intermediate frequency power, DC motor control, excition, charge, AC non-contact switch, the street light control and the intelligent exchange voltage-stabilized source equipment and so on. |
|
