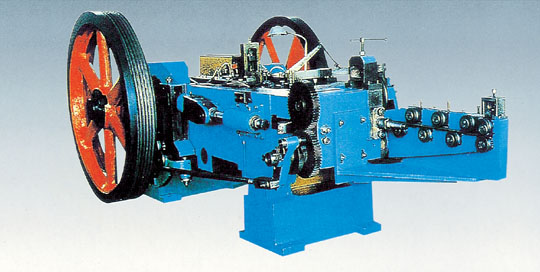

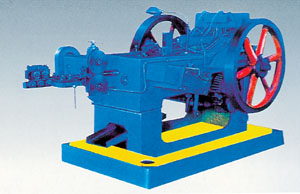

Z12 Series Twin-drive Mold Preparation Automatic Cold Former
Automatic upsetting uses cold drawn disk or bar and it is suitable for producing bright hex bolt, rivet and other parts with caps.
Technical Specifications
Model
shank diameter (mm)
shank length(mm)
Upset slider stroke (mm)
Productivity (pec/min)
Motor power (kw/970rpm)
Outer size (mm)
Weight (kg)
Z12-4L
2.4-4
5-50
90
100
3.0
1220×730×1035
1200
Z12-6L
4-6
8-90
140
60
4.0
2395×1430×1230
3600
Z12-8L
6.0-8
16-130
170
50
7.5
3180×1500×1430
6000
Z12-10L
8-10
20-160
200
50
11
3516×1900×1670
7000
Z12-12L
10-12
20-200
260
40
18.5
5000×1900×1670
10500
