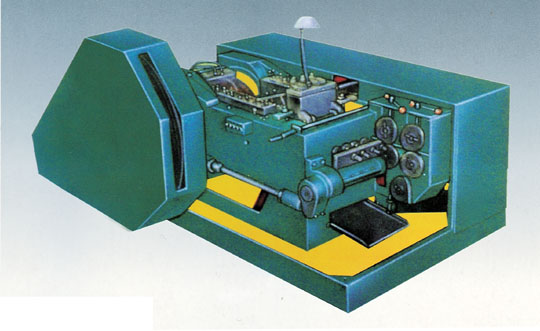

 Z41-10/4 Automatic Nut Cold Former
|
| |
Using cold drawn disk or bar to form bright hex nut blank and tap to obtain bright nex nut.
This series is all of horizontal type with horizontal multistage arrangement. The full process is carried out automatically from feeding, cutting, pushing, clamping to cold heading. It features precise reliable positioning, easy operation, regulation, maintenance and assembling, and energy saving. It is the ideal equipment for reliably producing quality non-standard irregularly shaped nuts. |
| |
|
| |
 Technical Specifications
|
| Model |
Product specifications |
Cold former slider stroke (mm) |
Productivity (pec/min) |
Motor power (kw) |
Outer Size (mm) |
Weight (kg) |
| Z41-4 |
M3-M4 |
80 |
160 |
3.0 |
1200×730×1035 |
1200 |
| Z41-6 |
M4-M6 |
85 |
120 |
4 |
2395×1430×1230 |
3600 |
| Z41-8 |
M6-M8 |
108 |
100 |
7.5 |
2560×1500×1350 |
4500 |
| Z41-10 |
M8-M10 |
108 |
90 |
11 |
3220×1800×1500 |
5500 |
| Z41-12/4 |
M10-M12 |
125 |
85 |
18.5 |
3100×1800×1600 |
15500 |
| Z41-16/4 |
M12-M16 |
150 |
70 |
22 |
4900×2350×1800 |
18000 |
| Z41-20/4 |
M16-M20 |
165 |
63 |
30 |
5700×2470×2000 |
20000 |
|
| |
|
