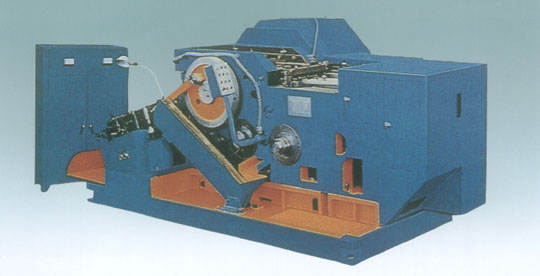

User :  Password :        Z12 Series Twin-drive Mold Preparation Automatic Cold Former Z41 Series Automatic Nut Cold Former All Fastener Equipment Sell Semi-conductor Series       ZS308 Mnlti-Station High-Speed Automatic Cold Former       The ZS308A multi-station high-speed cold headers is a kind of automatic equipment with high efficiency used to make screws (bolts).The horizontal arrangement is adopted for the upsetting station of our machine tool and the cold-drawn disk(bar)materials are used to produce the screws (bolts)products in succession through the working procedure of cutting off ,primary punching, intensive punching and thread rolling.     Technical Specifications Nominal pressure ton 85 Main motor power Kw 15 Main slider stroke mm 150 Max cut-off diameter mm 10 Welding part length mm 16-100 Max feeding length mm 120 Productive efficiency ppm 95-190 Heading position number   3(cutting- off excluded) Position interval mm 80 Net weight Kg 14800 Outer size (L×W×H) mm 3550×2440×1780
