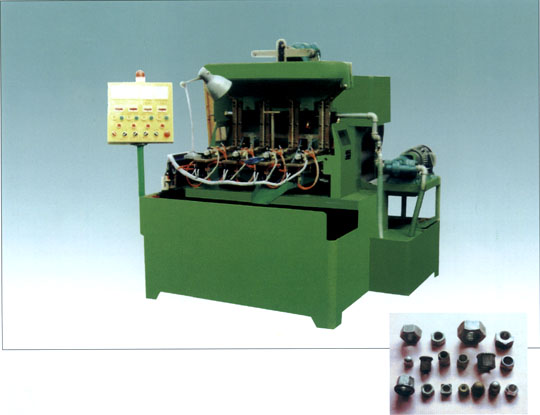

Z42 Series Automatic Nut Tapping Machine


    For batch processing of hex threads. Put the hex nut blanks into the hopper to finish feeding and tapping full automatically. The four main shafts are horizontal arranged for convenient operation, regulation, maintenance which is of advanced structure, feature excellent reliability and high efficiency.


Technical Specifications
Model Z4206 Z4208 Z4210 Z4212 Z4216 Z4220 Z4224
Max tapping diamter M6 M8 M10 M12 M16 M20 M24
Productivity (pec/min) 120 100 80 60 30 28 20
Main motor power (kw) 2.2 2.2 3 3 4 4 4
Shafts number 4 4 4 4 2 2 2
