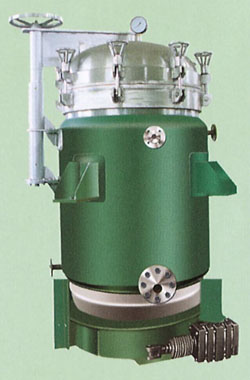

Automatic plate type blade airtight filter (DMYB Series)


Description

Automatic plate type blade airtight filter (DMYB series) features high efficiency, energy saving and environment friendly with its automatic airtight operation and precise purification, it has been widely used in pharmacy  , petrol , food beverage, biology  and sugar industry.




Features
Airtight operation , leakage free and environment friendly reduce cost by requiring no filter cloth and filter paper one time filtration , the purification degree reach PPM grade complete recovery of filtration liquid and no remnant remains pressing control button is enough for discharge outlet to be open automatically filtration residue could be removed easily and automatically the entire filtration process could be operated automatically by connecting with plc , the filtration temperature is no t constrained, easy to operate and fewer operators needed; low cost equipment and operation and convenient maintenance the residue or active carbon in liquid or de-coloration filtration could fully replace the frame plate filter.

Specification and Technical Parameter
Model Filtration
area
(m²)
Operating capacity
(T/h)
Work pressure (Mpa) Filter
cylinder
volume
(L)
Weight
(Kg)
Dimension
L×W×H
(mm)
petrochemical
industry
food Oil maximum
pressure
rating
pressure
DMYB-5 5 2-5 2-.5 1-1.2 0.5 ≤0.4 610 2200 1550×1300×2050
DMYB-7 7 5-7 4.5-6 1.4-2 790 2580 1600×1400×2100
DMYB-10 10 7-9 6.5-8 2-3 1250 2900 1700×1500×2400
DMYB-15 15 11-13 9-12 3-5 2100 3850 2060×2100×2000
DMYB-20 20 14-17 12-16 5-7 2250 4300 2150×2100×2180
DMYB-25 25 19-21 15-20 7-9 2600 4580 2150×2100×2780
DMYB-30 30 24-25 18.5-24 9-11 4720 5900 2650×2500×3750
DMYB-35 35 26-29 22-27 11-13 5000 6600 2700×2500×3920
