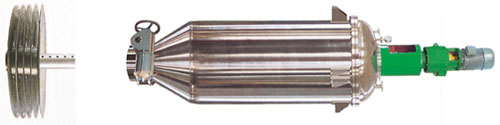

Plane blade lifter(plane plate type-DB Series)

Description
DB Series plane blade filter features high efficiency, energy saving and automatic airtight operation, widely used in chemical industry, petroleum, food industry and pharmacy, etc.
Separating solid from liquid: brewing industry, refining sugar vefinement, alkali;
De-coloration filtration of activated carbon, recycling catalyst, washing dryness and recovery, filtering and removing bacteria, filtering syrup

Features
Closed filtering, no leakage, no pollution, easy operation, taking us small place, plane filtering plate, stable filter cake. All the above contribute to fine filtration. It discharge residue centrifually and is adaptable to materials and does not need to be disassembled and re-installed.

Specification and Technical Parameter
Model Filtration
area
(m²)
Blade
Diameter
(mm)
Work
pressure
(Mpa)
Work
temperature
(℃)
Dimension
F×H
(mm)
DB-2 2 400 ≤0.4 ≤150 950×3600
DB-3 3 600 1200×3800
DB-5 5 600 1250×3700
DB-8 8 800 1400×4100
DB-10 10 800 1450×4300
DB-15 15 1000 1600×4600
DB-20 20 1000 1650×5100
DB-25 25 1000 1700×5500
DB-30 30 1000 1700×6300
DB-35 35 1000 1700×7300
DB-40 40 1250 2400×6400
DB-45 45 1250 2400×6600
DB-55 55 1250 2400×7400
DB-65 65 1250 2400×8200
