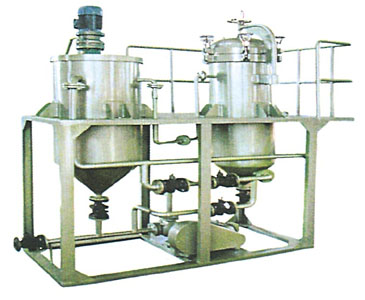

Closed filtre(CF series)

Application range
This product is mainly used for precision filtering of fluid materials in petroleum, paint, pigment, foodstuff, drink, pharmaceutical, grease and chemical industries, as well as decoloration filtering to various kind of liquid. Applicable scope:
Petrochemical: polyether, diesel oil, lubrication oil, white oil, transformer oil, naptha mineral oil and various kinds of base oil.
Grease: crude oil, floating oil, gasified oil, winterized oil, and stearin, etc, various kinds of vegetable oil.
Paint: finshing varnish, resin paint,lacquer and dyestuff, etc.
Foodstuff: gelatin,wine, salad oil, amylum, liquid glucose, sodium glutamate, mfruit juice and milk, etc. various kinds of wine and drink.
Pharmaceutical: hydrogen peroxide,vitamin, and glycerin, etc.
Organic chemical produces: various kinds of organic acid, alcohol, ester, benzene, aldehyde, and ether, as well as inouganic chemical products and soluble glass, etc.
Others: various kinds of auxiliary agents and water treatment agents.

Specification and Technical Parameter
Specitification Filtration
area
(m²)
Handing
capacity
(T/h)
Work
pressure
≤(Mpa)
Work
temperature
≤(℃)
Postfiltering
finess
mm≤
Dimension
L×W×H
(mm)
Weight
(Kg)
CF-1 1 0.5-1 0.4 150 5-10 1700×850×1650 500
CF-2 2 1-2 2800×1400×2200 1600
CF-4 4 2-4 2900×1400×2500 1800
CF-7 7 4-7 3000×1500×2700 2000
CF-10 10 7-10 3300×1600×3000 2300
CF-15 15 10-15 3600×2200×3200 2400
CF-20 20 15-20 3800×2200×3200 2600
CF-25 25 20-25 3800×2200×3500 2800
CF-30 30 25-30 3800×2200×3800 3000
