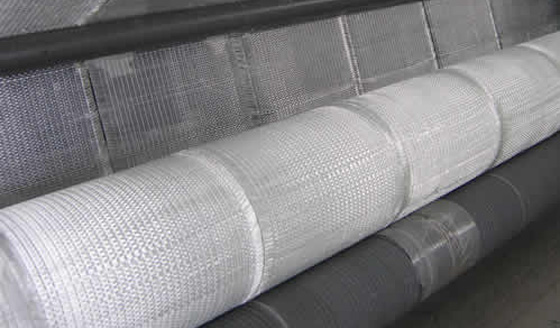

 Fiberglass horizon cloth
|
 Product application:
|
 The composite material has good reduce shake effect, small expand coefficient, high production intensity, small distortion. These products are ideal for aviation industry, eg.: the radar cover, the electronics bay, the engine outer covering, the engine leaf blade, the cabin door, the slurry of eggbeater and so on; ships industry, eg.: Sailing ship, speed boat, deep sea fishing boat, life boat and so on; sporting equipment, Fishing pole, ski, ice ball rod etc. chemical industry, eg.: three-dimensional horizontal tank, pipeline, work table etc. medical industry, eg.: clamping plank, bandage, barospirator etc. military industry, eg.: protects the armor, the large-caliber gun, tank bogie etc. the enhancement pre-workpiece which construct uses, the sword bar, sword belt which on the sword bar loom uses etc. |
| |
 |
| |
Product specification:
|
| Code |
Density (g/m2) |
Gauze(tex) |
Zonal force (N/25mm) |
Density |
| Warp thread |
Weft |
Warp thread(root/cm) |
weft(root/cm) |
| FEDW850 |
850 |
167dtex/36f Dacron |
1200tex E Fiberglass |
≥ 5000 |
2.36 |
6.8±0.2 |
| FEDW600 |
600 |
167dtex/36f Dacron |
1200tex E Fiberglass |
≥ 4000 |
2.36 |
4.8±0.2 |
| FEDW650 |
500 |
167dtex/36f Dacron |
1200tex E Fiberglass |
≥ 3500 |
2.36 |
4±0.2 |
| FEDW400 |
400 |
167dtex/36f Dacron |
600tex E Fiberglass |
≥ 3000 |
2.36 |
7.02±0.2 |
| FEDW300 |
300 |
167dtex/36f Dacron |
600tex E Fiberglass |
≥ 2250 |
2.36 |
5.26±0.2 |
| FEDW227 |
227 |
167dtex/36f Dacron |
600tex E Fiberglass |
≥ 1500 |
2.36 |
3.51±0.2 |
|
|
