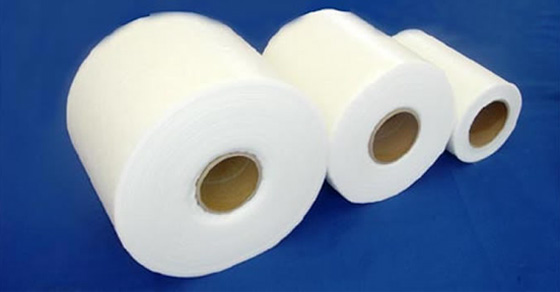

 Fiberglass surface mat
|
 |
| |
 Product application:
|
1. High-handed electrical system
2. Avoid seep for Building top
3. Heat insulation
4.Surface treat with top grade FRP and composites
Apply for composite's molding arts and crafts, for example: twist, handcraft, RTM, spray, etc. |
| |
Product specialties:
|
We specialized in surface mat, a complete range of style, advanced in technology and inspection. From 20,30,40,50,60-80g/m2 , constitutes four variety and many kinds of specification of E-fiberglass and alkali fiberglass surface mat. This products apply to composite's molding arts and crafts, for example: twist, handcraft, RTM, spray, etc. especially in the high-pressured electric appliance and the roofing guard against leak and insulate heat and heat preservation.
Handcraft technics: EMF and CMF density is 30-80 g/m2
Characteristic: production technical for fiberglass surface mat have mat's surface level up, fiber uniformity, feel pliancy, applied with multifarious FRP, dissolved with multifarious resin, rapid soak. Handcraft tone up layer and layer intensity, tenacity. Assured wearable and light fastness, product surface is very slick.
Twist technics: EMF and CMF density is 30-60 g/m2
Characteristic: exclusion handcraft's strong point, it has prevent leakage, good wearable and prevent water; production is used long times. |
| |
Product specification:
|
| Name |
Density (g/m2) |
Width (mm) |
Length (m) |
| Handcraft |
C/EMF-20 |
20±2 |
1000 |
400±5 |
| C/EMF-30 |
30±2 |
1000 |
400±5 |
| C/EMF-40 |
40±2 |
1000 |
350±5 |
| C/EMF-50 |
50±2 |
1000 |
300±5 |
| C/EMF-60 |
60±2 |
1000 |
300±5 |
| Twist |
C/EMF-30 |
30±2 |
100/200/250/400/500 |
400±5 |
| C/EMF-40 |
40±2 |
100/200/250/400/500 |
350±5 |
| C/EMF-50 |
50±2 |
100/200/250/400/500 |
300±5 |
| C/EMF-60 |
60±2 |
100/200/250/400/500 |
300±5 |
|
| |
| Package: Roll is sealing with PVC first then the external use hard paper box. |
|
